Welded Wire Mesh

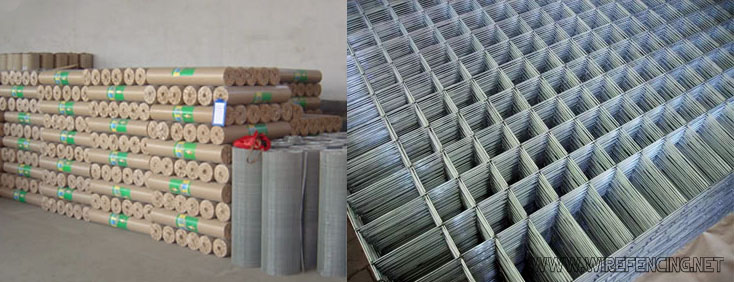

weled wire mesh

Description:

Welded wire mesh,or "welded mesh" is an electric fusion welded prefabricated joined grid consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control.
Welded Wire Mesh Type:
Welded Reinforced Fence Panel:
Galvanized welded mesh panel is made of superior quality welded mesh,with flat even surface,firm structure,be used extensively in building,food,agriculture and so on.
Assortments available:
    a.Welded stainless steel wire mesh panel
    b.Galvanized(Hot dipped Gal. and Electric Gal. )welded mesh panels
    c.PVC Coated welded wire mesh
Welded Rolled Wire Mesh:
Material:Low carbon steel wire,stainless steel wire
Weaving and characteristics:
    a.Hot dipped galvanizing after welding
    b.Welding with hot dipped galvanized iron wire
    c. Electric galvanizing after
    d.Welding with electric galvanized iron wire
    e.PVC Coated welded wire mesh
Specification List of Welded Wire Mesh
Opening
Wire Diameter<BWG>
In Inch
In Metric Unit(mm)
1/4″×1/4″
6.4mm×6.4mm
22,23,24
3/8″×3/8″
10.6mm×10.6mm
19,20,21,22
1/2″×1/2″
12.7mm×12.7mm
16,17,18,19,20,21,22,23
5/8″×5/8″
16mm×16mm
18,19,20,21
3/4″×3/4″
19.1mm×19.1mm
16,17,18,19,20,21
1″×1/2″
25.4mm×12.7mm
16,17,18,19,20,21
1-1/2″×1-1/2″
38mm×38mm
14,15,16,17,18,19
1″×2″
25.4mm×50.8mm
14,15,16
2″×2″
50.8mm×50.8mm
12,13,14,15,16
Note:a.Standard roll length:30m;width:0.5m to 1.8m,b.Special sizes available at request,c.Packing:in waterproof paper in rolls.Custom packing available at request.
Galvanized Fencing Mesh
Opening
Wire Diameter<BWG>
In Inch
In Metric Unit(mm)
2″×3″
50mm×75mm
2.0mm,2.5mm,1.65mm
3″×3″
75mm×75mm
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2″×4″
50mm×100mm
2.11mm,2.5mm
4″×4″
100mm×100mm
2.0mm,2.5mm
PVC Coated Welded Mesh
Opening
Wire Diameter<BWG>
In Inch
In Metric Unit(mm)
1/2″×1/2″
12.7mm×12.7mm
16,17,18,19,20,21
3/4″×3/4″
19mm×19mm
16,17,18,19,20,21
1″×1″
25.4mm×25.4mm
15,16,17,18,19,20
Note:a.Standard roll length:30m;width:0.5m to 1.8m,b.Special sizes available at request,c.Packing:in waterproof paper in rolls.Custom packing available at request.
